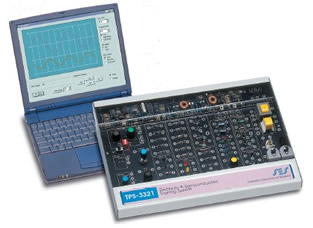

TPS-3321 - Electricity and Semiconductors Training System

This course introduces the student to fundamentals of electricity covering: DC and AC circuits, voltage, current, resistors, capacitors, coils, measurements, electricity laws, electromagnetism, power supplies, semiconductors, motors and generators.

The course includes comprehensive hands-on experiments with electronic semiconductors: diodes, transistors (Bipolar and FET), regulators, LEDs, thermistors, LDR, phototransistor, SCR, DIAC, TRIAC, UJT and their applications such as power supplies, amplifiers and power control.

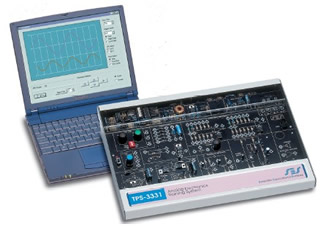

TPS-3331 - Analog Electronics Training System

This course introduces the student to analog electronics and covers topics such as: voltage, current, resistors, measurements, electricity laws and circuits, diodes, diode circuits, transistor (Bipolar and FET) characteristics, transistor amplifiers, operational amplifier characteristics and applications, oscillators, filters, power amplifiers, power supplies, linear and switching regulators.

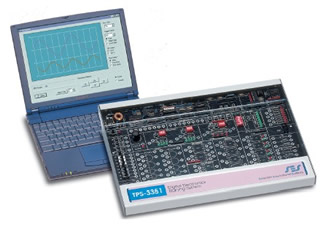

TPS-3351 - Digital Electronics Training System

This course introduces the student to digital electronics: logic components, families of logic devices, logic and combinatorial circuits, sequential logic circuits, and integrated digital systems including A/D – D/A conversion.

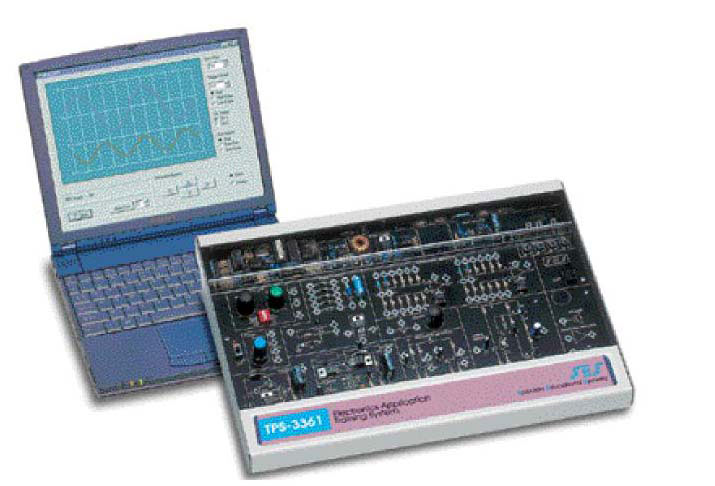

TPS-3361 - Electronics Applications Training System

This course introduces the student to special electronics application circuits and covers topics like: 555 timer applications, transitor differential amplifier, special operational amplifiers, switching amplifier and sensor control.

The system is stand-alone contains all the necessary electronics components needed for performing hand-on experiments.

The experiment area is in the central part of the trainer including circuit drawing, test points and peripheral outlets and inlets. The circuit board upper side includes visible component circuits protected by sturdy transparent cover.

The system includes a built in power supply with +12V, -12V and variable DC voltage.

The system includes the SES Lab unit with a two-channel oscilloscope Voltmeter and a function generator all display on the PC, which communicates with a PC for controlling the function generator and oscilloscope display, including spectrum analysis.

The built in function generator can also be operated manually, controlled by the embedded micro-controller for Sine/Triangle, Sweep/Constant signals.

Experiment manual for the student and instructor manual accompany the system.

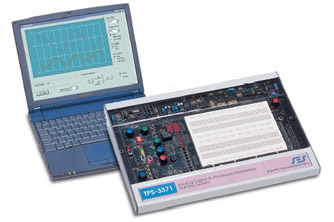

TPS-3371 -Analog, Digital, and Hardware Electronics Training System

This trainer is designed for experiments in analog electronics, digital electronics, and microcomputer interfacing on a solderless breadboard. The system includes peripheral components to be combined with discrete components, which are plugged into the breadboard.

This trainer is ideal for student competence evaluation.

TPS-3340 - Basic Elctronics Training System

This course introduces the student to analog and digital electronic systems, based on a problem-solving approach: Switches and sensors, Driver and loads, gate applications, timers, counters, system control, power regulation, amplifiers, measurements in electronic systems, and challenge exercises.
This course is especially aimed for students in the fields of mechatronics and autotronics.


This trainer does not include the SESLAB unit.

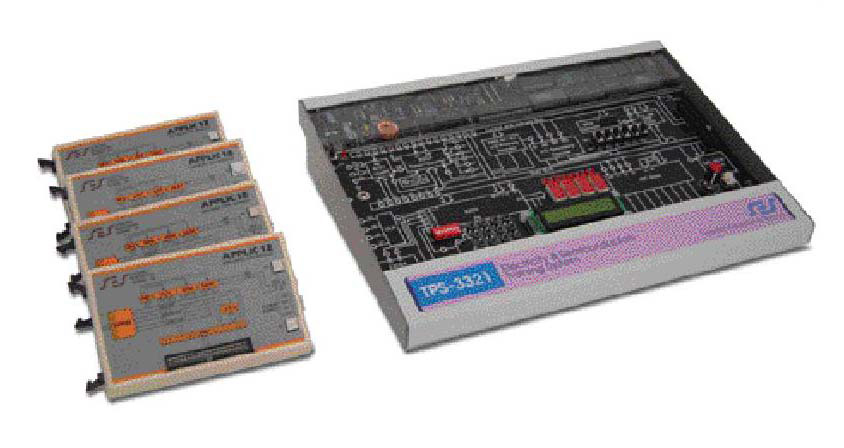

TPS-3200 Microprocessor and Microcontroller Training System

This course introduces the student to microprocessors and microcontrollers and covers microcomputer structure, programming in machine language and assembly language, hardware, peripherals, interfacing, memory expansion, input/output ports, switches, LEDs, displays, keyboard, timer/counter, DAC, ADC, serial communication, DC and stepper motor control and microcontroller applications.

The system is based on the TPS-3200 training system (hardware, peripheral, and application training system) combined with one or more of the following microprocessor Module:

APPLIC-12 8051/8032-microcontroller module
APPLIC-15 8085 8-bit microprocessor module
APPLIC-18 8088 16-bit microprocessor module
APPLIC-32 ARM 32-bit microprocessor module

All modules communicate with a PC through an RS232 port (can be adapted to USB port) and come with complete development software including editor, assembler, and debugger. APPLIC-12 and APPLIC-32 come also with C compiler and C debugger.

The system can be operated as a stand alone system without a PC, guided by experimental book using its built in oscilloscope or an external oscilloscope.

The system can be connected to a PC in serial communication (RS232 or USB) using SES-CBT courseware and SESCOPE software for signal display

The training systems include theory, experiments and user manuals.

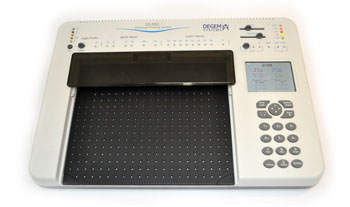

EB-3000 Universal Electronics Main Board

The EB-3000 electronics laboratory is a base unit with integral measuring instruments and a series of electronic components which plug into the base unit.

The base unit provides a power supply, function generator, and measuring instruments for the entire family of electronics training plug-in cards.

PAQUETE PARA PR?CTICAS CONVENCIONALES E INTERACTIVAS PARA EL LABORATORIO DE USOS M?LTIPLES

INTRODUCCI?N

• PAQUETE PARA PR?CTICAS CONVENCIONALES E INTERACTIVAS PARA EL LABORATORIO DE USOS M?LTIPLES.
• EL PAQUETE ESTA CONFORMADO POR COMPONENTES (MATERIALES Y EQUIPO), PARA LA REALIZACI?N DE PR?CTICAS EN MODO CONVENCIONAL Y/O EN MODO INTERACTIVO.
• ESTOS CUMPLEN CON LAS ESTRUCTURAS F?SICAS Y DE OPERACI?N PARA ATENDER LAS NECESIDADES DE EXPERIMENTACI?N EN LOS DOS MODOS.
• PARA LA EJECUCI?N DE LAS PR?CTICAS SE INCLUYE EL SIGUIENTE MATERIAL:
